Edit68K - Options
Assembler and editor options may be
changed by selecting the desired item under the
Options menu item.
Assembler Options...
Assembler Options
Generate
List File
The assembler will create a list file when checked. The list file is used by
the EASy68K simulator to provide source level debugging. The list file will
have the same name as the source file with an .L68 file extension. The list
file contains the original program source along with the machine code
generated by the assembler and error messages. The list file may also
include instructions added by the assembler for structured control
statements or macros. The List File Options described below along with some
assembler directives control how much information is included in the list
file.
Generate
S-Record
The assembler will create an S-Record file when checked. The S-Record file
is required by the EASy68K simulator. The S-Record file
will have the same name as the source file with an .S68 file extension. The
S-Record file contains the machine code generated by the assembler in a text
format compatible with the Motorola S-Record format. See the included
description of the EASy68K S-Record format
for details. S-Record files may be converted to binary files using the
EASyBIN utility.
Show
Warnings
The assembler will display warning messages during assembly when checked.
Error messages are always displayed.
Auto Save Modified Source Before Assembling
When checked, the assembler will save all modified source files before assembling.
Assemble Bit Field Instructions
When checked,
assembly of bit field instructions is supported. Only 68000 addressing modes
are supported. Bit field instructions are available in 68020 and higher 68K
processors and were not part of the 68000 instruction set. Support has been
added to EASy68K for educational purposes. EASy68K does not include support
for any other non 68000 instructions.
Template
The template is used to create a new source file.
List File Options
Cross
Reference
When checked the list file will include a cross reference at the bottom of
the file of all labels used along with their respective values.
Constants
Expanded
When checked the list file will contain all of the data created by the
assembler from constants defined in the source file.
Structured Expanded
When checked the list file will contain all of the code added by the
assembler to implement the structured assembly statements contained in the
source file.
Macros
Expanded
When checked the list file will contain a complete expansion of each macro
call.
Editor Options...
General
This window may be used to change the appearance of text in the currently
selected window. The Editor Options are also used as the default settings
for new source files. The font and tab characteristics apply to the entire
window.
New File Settings
New Font
Used to select a new font.
New Font Size
Used to select a new font size.
Fixed Tab Size
The size, in characters, of each tab.
Assembly Tabs or Fixed Tabs
Select the desired tab type. Assembly Tabs position the tab stops at
predefined positions that work best for traditional formatting of assembly
source. Fixed Tabs uses the tab size specified in the Fixed Tab Size field.
Fixed tabs are best for writing Structured Assembly code.
Current File Info
Font
The name of the current font.
Font Size
The size of the current font.
Fixed Tab Size
The size of the fixed tab in characters.
Tab Type
The type of tabs currently in use.
Environment
Auto Indent
When checked the editor will indent new lines to the same level as the
preceding line.
Real Tabs
When checked the editor uses real tab characters. When unchecked the editor
uses spaces in place of tab characters.

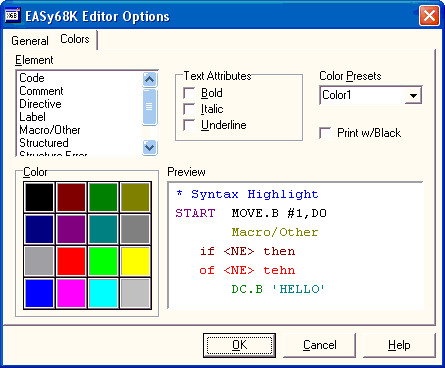

Colors
This window may be used to
change the editors colors and text attributes used for syntax highlighting.
The Preview window displays the style changes.
Clicking OK applies any changes to every open file in the editor.
Element
Code elements may be individually selected so their color and/or attributes may be changed.
Text Attributes
The attributes of the currently selected Element are displayed and may be changed.
Color Presets
Selecting a color preset will change the colors and attributes of all elements to match the
preset. Syntax highlighting may be disabled by selecting Disabled.
