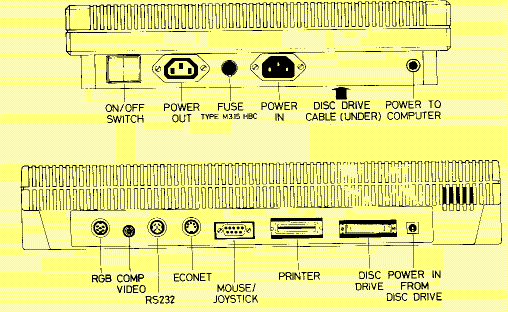

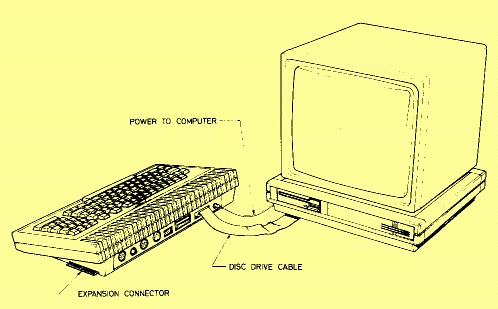

Referring to the diagrams, connect the disc and 5 volt power cables from the

disc drive unit to the appropriate sockets on the computer. Plug the monitor

unit mains lead into the power 'Out' socket at the rear of the disc drive unit.

Plug the disc drive unit mains lead connector into the power 'In' connector at

the rear of the unit; now insert the mains lead plug into a mains outlet.
