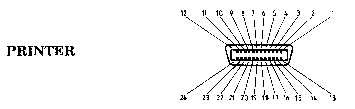

Printer | 24 Way Ribbon socket |
1 -- Strobe (negative true) | 13 -- Ground |
2 -- Data 0 | 14 -- Ground |
3 -- Data 1 | 15 -- Ground |
4 -- Data 2 | 16 -- Ground |
5 -- Data 3 | 17 -- Ground |
6 -- Data 4 | 18 -- Ground |
7 -- Data 5 | 19 ----Ground |
8 -- Data 6 | 20 -- Ground |
9 -- Data 7 | 21 -- Ground |
10 -- Acknowledge (negative true) | 22 ---Ground |
11 -- No connection | 23 -- Ground |
12 -- No connection | 24 -- Ground |

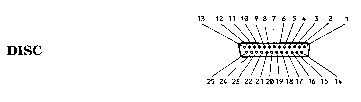

Disc | 25 Way D-type socket | |
1 | Index | 14---- Ground |
2 | Drive select 0 | 15 -- Ground |
3 | Drive select 1 | 16 -- Ground |
4 | No connection | I 7 -- Ground |
5 | Load Head/Motor Control | 18 -- Ground |
6 | Direction | 19 -- Ground |
7 | Seek/Step | 20 -- Ground |
8 | Write Data | 21 -- Ground |
9 | Write Enable | 22 -- Ground |
10 | Track 0 | 23 -- Ground |
11 | Write Protect | 24 -- Ground |
12 | Read Data | 25 -- Ground |
13 | Side Select | |
App 11.2 |
